LIVE STEAM

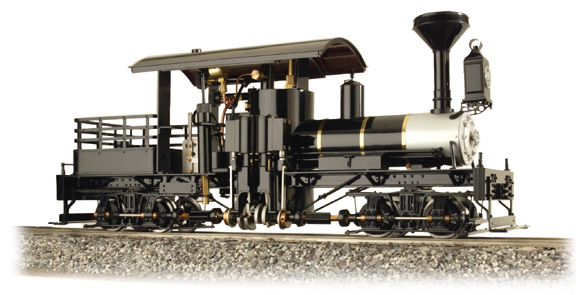

SHAY 13 TON OPEN CAB


Accucraft Trains is proud to announce 2-truck shay in 1:20.3 scale and 45mm gauge.  Based on 13 ton open cab. the model will be built in live steam and electric versions.   Models are constructed from brass and stainless steel.   Die-cast gearbox (electric version), steel gears, and precise mechanism will provide many years of operation.

All Accucraft Trains models are designed and built to exacting standards from carefully researched plans and prototype measurements.  We hand-craft every detail part from brass and steel.  Every effort is made to assure quality of each part.

TECHNICAL SPECIFICATIONS

Scale/Gauge - 1:20.3 Scale/ 45mm Gauge
Total Weight - 4.8 Kg, 10.5 lb.
Length - 44.4 mm, 17.5 in.
Width - 114 mm, 4.5 in.
Height - 198 mm, 7.8 in.
Minimum Radius - 2.4 M, 8 Ft.
Driver Wheels Dia. - 31.8 mm, 1.25 in.
Cylinders - 2 x outside frame
Cylinder Size - D16 x 32
Valve Gear - Simple Eccentric
Valves - Piston Valve
Reversing - Piston-valve Reverser
Fuel - Butane
Boiler - Single Flue
Water Capacity - 120 ml
Working Pressure - 50-60 PSI
Fittings - Safety valve, Boiler pressure gauge, Water filler valve, Throttle
(All specifications and designs are subject to change without notice)

Order Information:
AC77-201  SHAY - 13 TON OPEN CAB.
